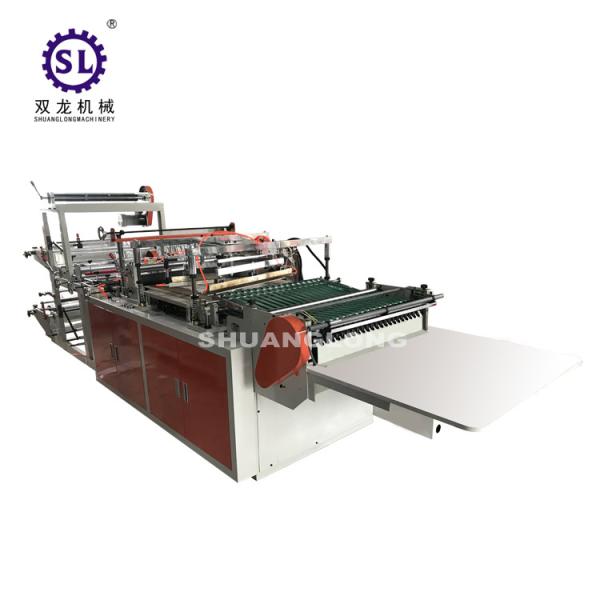

This machine is controlled by the computer, there is frequency
conversion that adjusts the speed , electric eye following ,
adjustable function of various specifications , easy to operate.
Suitable for different bags such as flower bag , tie bag , umbrella
wrapping bag ,etc. to process.
Main Features
1 this machine uses the liquid crystal computer to touch the screen
control, may initialize the system bag speed, makes the bag length,
establishes in advance approves/the inferior quantity to carry on
automatically counts, alarm in advance, after in groups/inferior
quantity knock off.
2 the computer control burns the knife temperature, may carry on
the lock following to the temperature.
3 the host electrical machinery speed controls with the frequency
changer, the revolution steady province electricity, the ease of
operation is relaxed.
4 light electric eye track, accuracy control system bag size.
5 uses the high-level import silica gel conveyor belt, the service
life long, makes the bag to be artistic.
6 the belt dashed line spot breaks the function

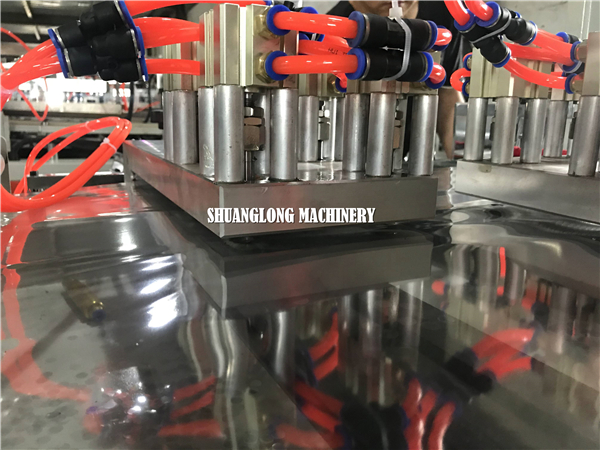

7 The side be sealed is of high strong , very smooth, and good in
appearance
| | | |
| Maximum length | 750mm | 950mm | 1050mm |
| Width | 80-600mm | 100-800mm | 100-900mm |
| Speed | 50-100pc/min | 50-100pc/min | 50-100pc/min |
| Length deviation | ±2/1000mm | ±2/1000mm | ±2/1000mm |
| Seals Cuts Thickness | 0.015-0.08mm | 0.015-0.08mm | 0.015-0.08mm |
| Electric heating | 6.5kw | 7.2kw | 7.8kw |
| Power | 11kw/380V | 13kw | 16kw |
| Dimentions | 7000*1550*1420mm | 7700*1650*1420mm | 8700*1750*1420mm |
| Weight | 4000kg | 5000kg | 5500kg |
