    Roll to Roll Gravure Printing Machine for Decrated Paper SLAY-D

    Ask Lasest Price
    Brand Name : SL
    Model Number : SLAY-D
    Certification : CE
    Price : Price Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 sets per month
    • Product Details
    • Company Profile

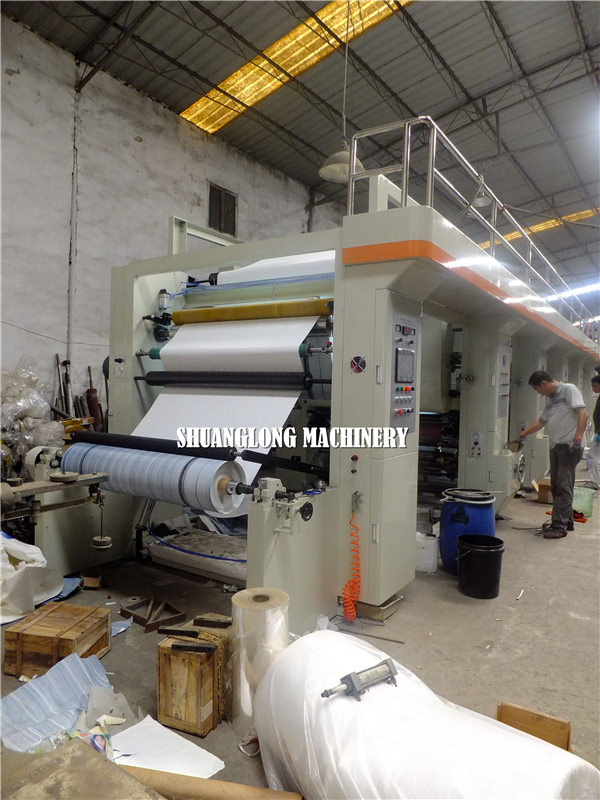

    Roll to Roll Gravure Printing Machine for Decrated Paper SLAY-D

    Roll to Roll Gravure Printing Machine for Decrated Paper


    This machine is specialized for decrated paper roll printing


    Main PointModelSLAY-B
    Printing colors4 colors with 1 color coating
    Printing materialPaper
    Printing width1400mm
    Heating wayElectrical heating, Gas heating, Oil heating
    Printing speed80m/min
    Total powerAbout 100kw
    Machine weightAbout 10 Ton
    Machine size (LWH)10500 x 3300 x 2800
    Unwind & RewindTypeSingle shaft
    Raw material diameter1000mm
    Paper core diameter76mm (Optional 152mm)
    Material splicing and cuttingManual
    Tension controlDancer roller
    Air shaftShaft type air shaft
    Printing UnitPrinting cylinderShaft-less type design
    Printing cylinder diameter range120-420mm
    Color register precisionVertical (Y-Axis) ≤±0.10mm (Manual) Horizontal (X-axis) ≤±0.10mm (Manual)
    Emboss rubber roller diameter135mm (NBR Shore (A) 60 °~ 65°)
    Ink recyclePneumatic Ink pump
    Control PartAuto color register systemNot Include ( optional possible)
    Web video inspection systemNot Include ( optional possible)
    Water cooling systemNot Include ( optional possible)
    Single motor drive tension systemInclude
    Ink viscosityNot Include ( optional possible)
    Reverse printing deviceNot Include ( optional possible)
